M150 Laser Source

The M150 RF CO₂ laser is designed with a slab discharge configuration, with the M150 RF CO₂ laser achieving a peak power of over 375W. The M150 RF CO₂ laser deliver excellent beam quality and power stability. With short pulse rise and fall times, the M150 RF CO₂ laser significantly enhance production efficiency. The high peak power and superior beam quality make the M150 RF CO₂ laser an ideal choice for a wide range of material processing applications.

Contact us
Detail

M150 Laser Source

The M Series RF CO₂ lasers is designed with a slab discharge configuration, with the M150 lasers exceeding 375W. This compact laser design integrates the RF power supply with the laser cavity, allowing for flexible installation options, either vertically or horizontally.

The M Series lasers deliver excellent beam quality and power stability. With short pulse rise and fall times, the M Series lasers significantly enhance production efficiency. The high peak power and superior beam quality make the M Series lasers an ideal choice for a wide range of material processing applications.

The M series RF CO₂ lasers is built on a universal platform, featuring standardized mechanical, electrical, and optical interfaces, along with common software and unified service and support. The power range extends from 100W to 500W.

Advantages

  • Wide range of operating power
  • High peak power
  • Short power rise and fall time
  • Excellent beam quality
  • High power stability
  • RF power supply can be Installed vertically or horizontally



Applications

  • Marking
  • Engraving
  • Cutting
  • Drilling

Specifications:

MOEL M100i M100 M150
Wavelength (μm) 9.3 10.6 10.6
Output Power (W) ≥ 90W > 100W > 150W
Power Range (W) 10-90W 10-100W 10-150W
Peak Power (W) 225W 250W 375W
Power Stability (%) < ±6% < ±6% < ±6%
Mode Quality (M²) M² < 1.3 M² < 1.3 M² < 1.3
Beam Ellipticity < 1.2:1 < 1.2:1 < 1.2:1
Beam Diameter (mm) 2.2 ± 0.6 2.2 ± 0.6 2.2 ± 0.6
Full-Angle Beam Divergence (mrad) < 7 < 7 < 7
Typical Polarization (parallel to baseplate) > 100:1 > 100:1 > 100:1
Pulse Frequency (kHz) 0 – 100kHz 0 – 100kHz 0 – 100kHz
RF Excitation Pulse Width Range (μs) 2 – 1000μs 2 – 1000μs 2 – 1000μs
Duty Cycle Limit (%) 0 ~ 60% 0 ~ 60% 0 ~ 60%
Pulse Rise/Fall Time (μs) ≤ 90μs ≤ 90μs ≤ 90μs
Weight 22.8kg 22.8kg 22.8kg
Dimensions (L x W x H) 908.4 x 164.6 x 134.8 mm 908.4 x 164.6 x 134.8 mm 908.4 x 164.6 x 134.8 mm
Cooling Water Water Water
Heat Load (W) < 2400W < 2400W < 2400W
Input Power
DC Input Voltage (VDC) 48VDC 48VDC 48VDC
Continuous DC Input Current (A) 50A 50A 50A
Environment Condition
Maximum Case Temperature 5°C ~ 40°C 5°C ~ 40°C 5°C ~ 40°C
Temperature < 50°C < 50°C < 50°C
Altitude < 2000m < 2000m < 2000m
Humidity < 80%, Non-Condensing < 80%, Non-Condensing < 80%, Non-Condensing
Shipping/Storage Environment -10°C ~ 60°C, Non-Condensing -10°C ~ 60°C, Non-Condensing -10°C ~ 60°C, Non-Condensing
Coolant
Dynamic Coolant Flow Rate (l/min) 6L/min 6L/min 6L/min
Coolant Maximum Static Pressure (kPa) 210-500kPa 210-500kPa 210-500kPa
Coolant Setpoint Temperature Range 20°C – 30°C 20°C – 30°C 20°C – 30°C
Hardness of water (CaCO3) < 250mg/L < 250mg/L < 250mg/L
Notes:
Measured at 10 kHz PRF, 60% duty cycle after a 5 minutes warm-up from cold start.
Power Stability definition: At a constant water temperature, ±(Pmax – Pmin)/(2Pmax).
Measured at the position of shaping lens light outlet.
Measured at 10 kHz PRF and 60% duty cycle operation, maximum average input current.

You Might Also Like

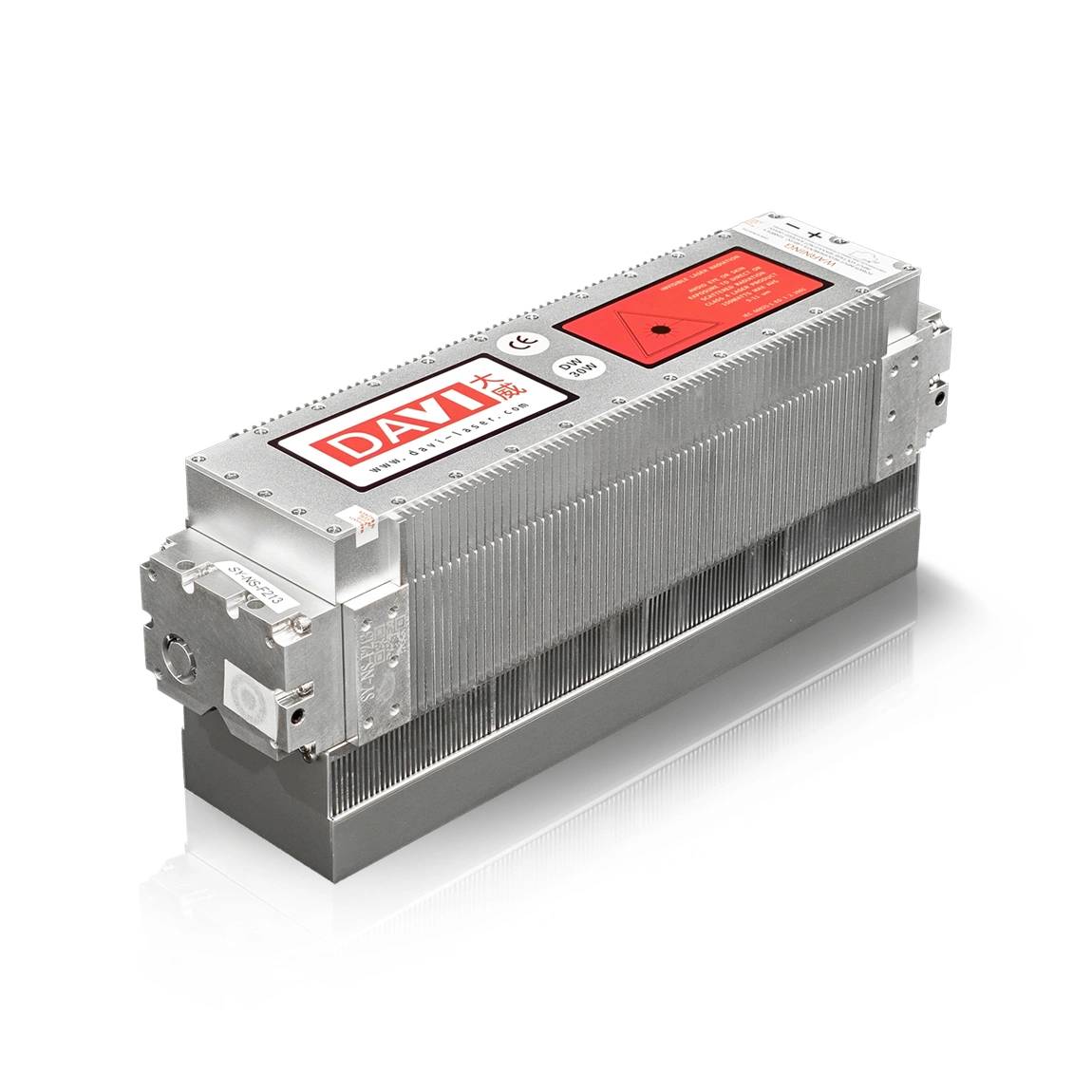

D30

D30 Series RF CO₂ Lasers

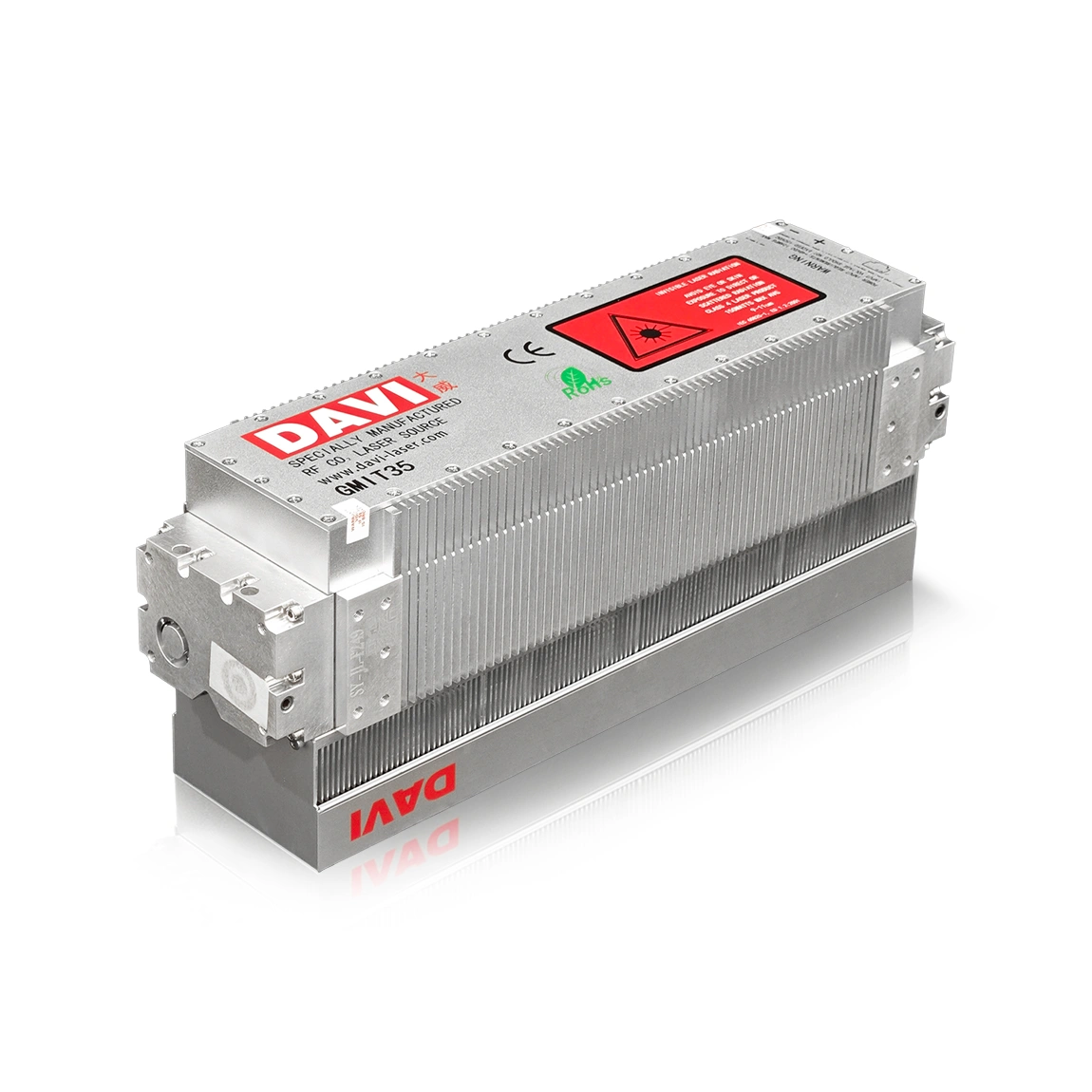

GMIT35

GMIT35 RF CO₂ Lasers

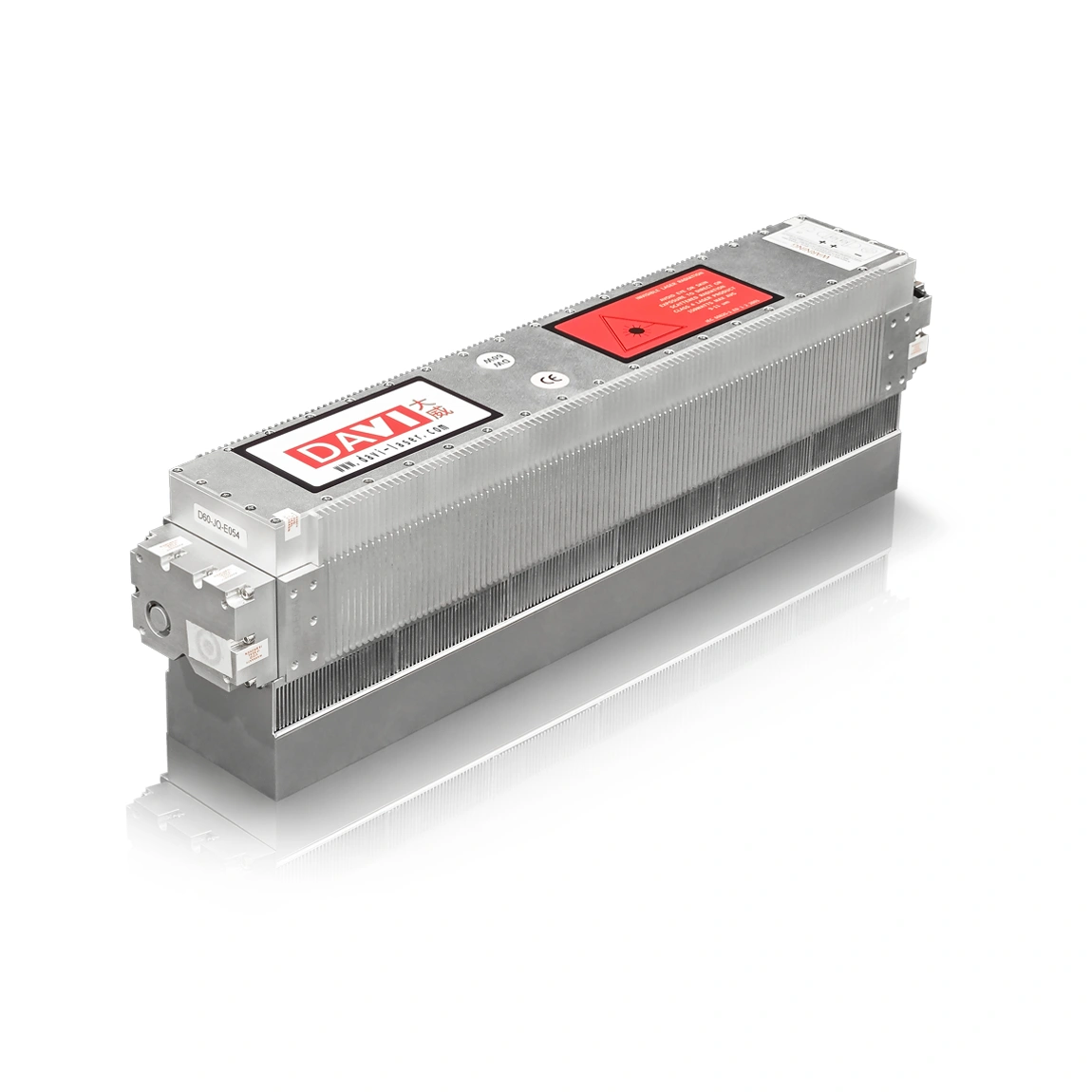

D60

D60 Series RF CO₂ Lasers

D60

GMIT60 Laser Source

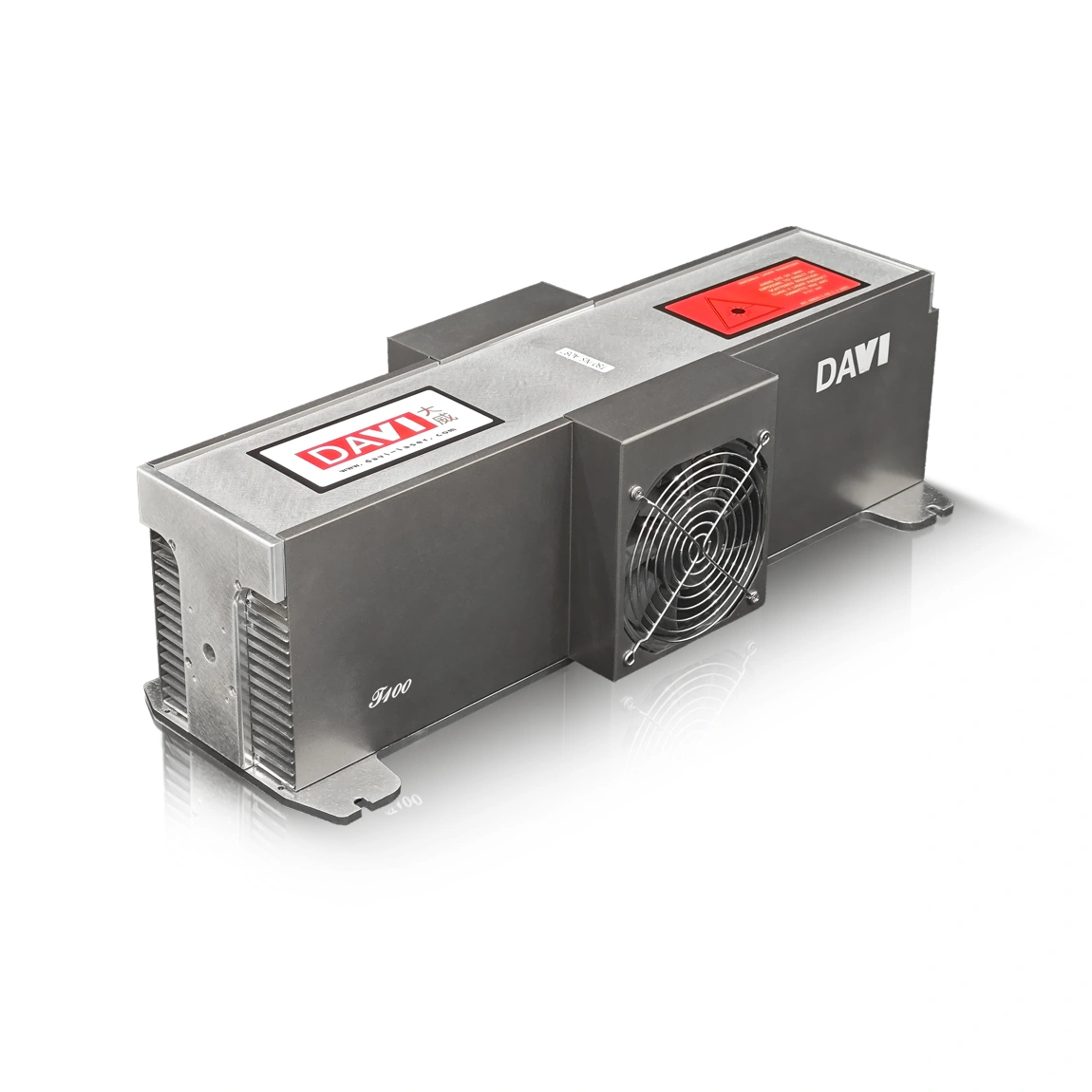

T80

T80 Laser Source


High-Quality M150 CNC Universal Laser Processing System Overview

The M150 CNC Universal Laser Processing System represents cutting-edge technology in material processing applications. Designed with a slab discharge configuration, this high-quality laser system achieves a peak power of over 375W, delivering exceptional performance for marking, engraving, cutting, and drilling operations. The compact design integrates the RF power supply with the laser cavity, offering flexible installation options while maintaining excellent beam quality and power stability. With short pulse rise and fall times, the M150 significantly enhances production efficiency across various industrial applications. Its superior beam quality (M² < 1.3) and high power stability (< ±6%) make it an ideal choice for precision processing requirements in diverse manufacturing environments.

Technical Advantages of M150 CNC Universal Laser Processing System

Our professional M150 CNC Universal Laser Processing System solution offers numerous technical advantages that set it apart from conventional laser systems. The system features a wide operating power range (10-150W), high peak power (375W), and rapid power modulation capabilities with pulse frequencies up to 100kHz. The RF-excited CO₂ laser source provides consistent performance with beam ellipticity < 1.2:1 and full-angle beam divergence < 7 mrad. The universal platform design ensures standardized mechanical, electrical, and optical interfaces, simplifying integration into existing production lines. With water cooling system and compact dimensions (908.4 x 164.6 x 134.8 mm), the M150 maintains optimal operating temperatures while occupying minimal floor space, making it a versatile solution for space-constrained manufacturing facilities.
