M2-100 Laser Source
The M2-100 RF CO₂ laser is designed with a slab discharge configuration, with the M2-100 RF CO₂ laser achieving a peak power of over 250W. The M2-100 RF CO₂ laser deliver excellent beam quality and power stability. With short pulse rise and fall times, the M2-100 RF CO₂ laser significantly enhance production efficiency. The high peak power and superior beam quality make the M2-100 RF CO₂ laser an ideal choice for a wide range of material processing applications.
M2-100 Laser Source
The M Series RF CO₂ lasers is designed with a slab discharge configuration, with the M100 lasers achieving a peak power of over 250W and the M150 lasers exceeding 375W. This compact laser design integrates the RF power supply with the laser cavity, allowing for flexible installation options, either vertically or horizontally.
The M Series lasers deliver excellent beam quality and power stability. With short pulse rise and fall times, the M Series lasers significantly enhance production efficiency. The high peak power and superior beam quality make the M Series lasers an ideal choice for a wide range of material processing applications.
The M series RF CO₂ lasers is built on a universal platform, featuring standardized mechanical, electrical, and optical interfaces, along with common software and unified service and support. The power range extends from 100W to 500W.
Advantages
- Wide range of operating power
- High peak power
- Short power rise and fall time
- Excellent beam quality
- High power stability
- RF power supply can be Installed vertically or horizontally
Applications
- Marking
- Engraving
- Cutting
- Drilling

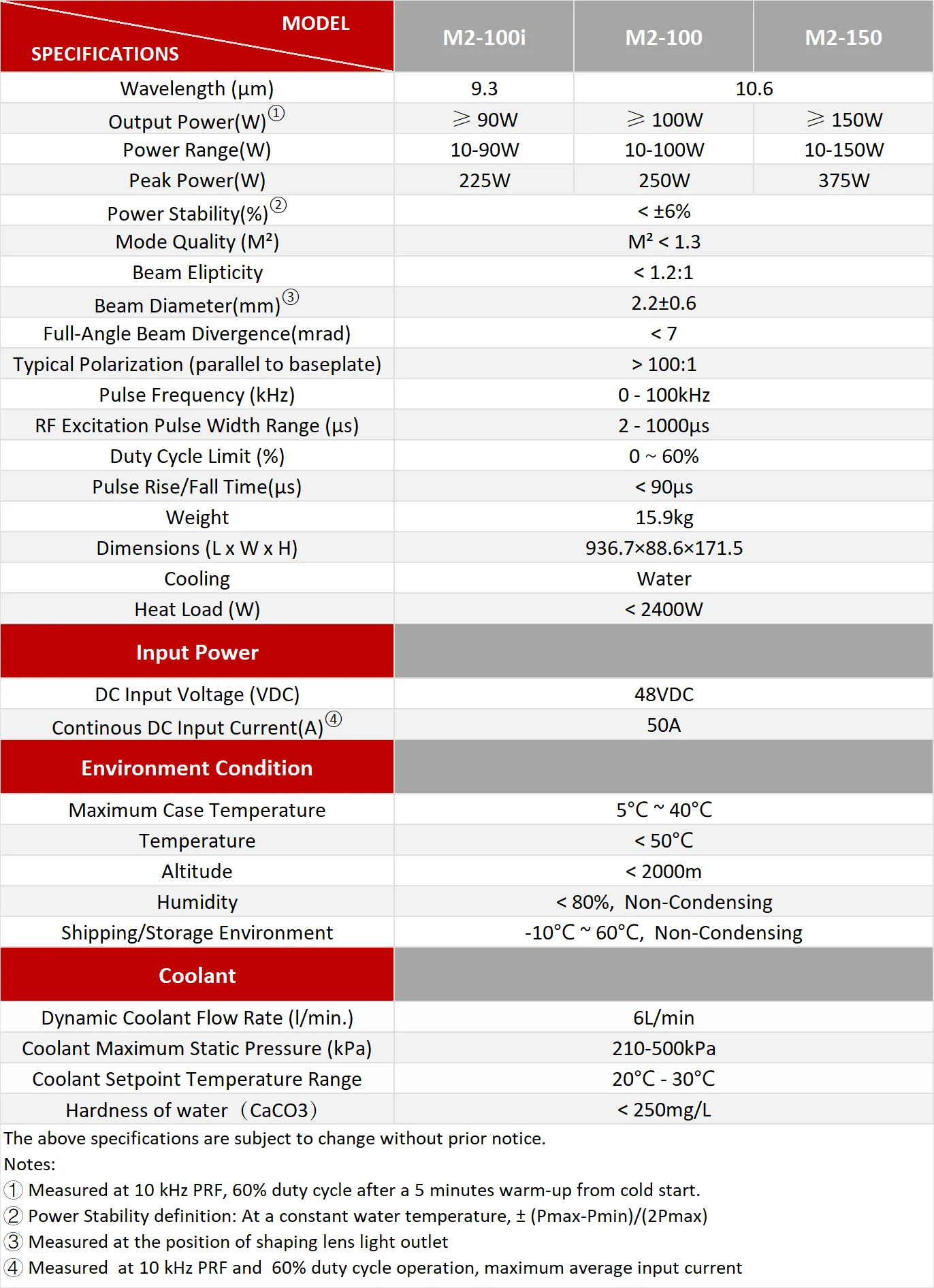

Specifications:
| MODEL | M2-100i | M2-100 | M2-150 |
| Wavelength(μm) | 9.3 | 10.6 | |
| Output Power(W)① | ≥90W | ≥100W | ≥150W |
| Power Range(W) | 10-90W | 10-100W | 10-150W |
| Peak Power(W) | 225W | 250W | 375W |
| Power Stability(%)② | <±6% | ||
| Mode Quality(M²) | M²<1.3 | ||
| Beam Elipticity | <1.2:1 | ||
| Beam Diameter(mm)③ | 2.2±0.6 | ||
| Full-Angle Beam Divergence(mrad) | <7 | ||
| Typical Polarization (parallel to baseplate) | >100:1 | ||
| Pulse Frequency(kHz) | 0-100kHz | ||
| RF Excitation Pulse Width Range(μs) | 2-1000μs | ||
| Duty Cycle Limit(%) | 0～60% | ||
| Pulse Rise/Fall Time(μs) | <90μs | ||
| Weight | 15.9kg | ||
| Dimensions(L×W×H) | 936.7×88.6×171.5 | ||
| Cooling | Water | ||
| Heat Load (W) | <2400w | ||
| Input Power | |||
| DC Input Voltage(VDC) | 48VDC | ||
| Continous DC Input Current(A)④ | 50A | ||
| Environment Condition | |||
| Maximum Case Temperature | 5℃~40℃ | ||
| Temperature | <50℃ | ||
| Altitude | <2000m | ||
| Humidity | <80%,Non-Condensing | ||
| Shipping/Storage Environment | -10℃~60℃,Non-Condensing | ||
| Coolant | |||
| Dynamic Coolant Flow Rate(I/min.) | 6L/min | ||
| Coolant Maximum Static Pressure(kPa) | 210-500kPa | ||
| Coolant Setpoint Temperature Range | 20℃-30℃ | ||
| Hardness of water(CaCO3) | <250mg/L | ||
| The above specifications are subject to change without prior notice. Notes: ①Measured at 10kHz PRF,60%duty cycle after a 5 minutes warm-up from cold start. ②Power Stability definition:At a constant water temperature,±(Pmax-Pmin)/(2Pmax) ③Measured at the position of shaping lens light outlet ④Measured at 10 kHz PRF and 60%duty cycle operation,maximum average input current |
|||
